Applications:Aggregate Field, Concrete Mixing Plant, Dry Mortar Plant Desulfurization, Quartz Sand etc.
Materials:coal, gravel, sand, cement, chemical fertilizer, food, etc
Feed size:Belt width: 500–1600 mm
Capacity:78–2195 t/h
The conveyors consist of standard parts, which are advanced and simple in structure, easy to maintain. Our vibrating equipment is adaptable for stationary and mobile crushing plants. They are widely used in mining, metallurgical and coal industry to transfer sandy or lump materials, or packaged materials. According to different transferring equipment, the transfer system can be one independently or multi-conveyors or combined with other transfer equipments.

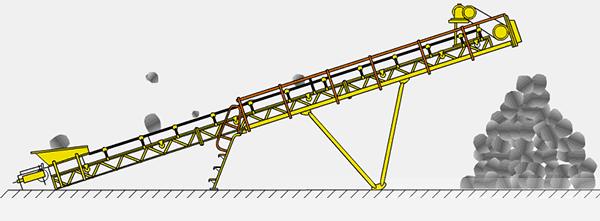

The conveyers which are produced by BREAK-DAY consist of standard parts, which are advanced and simple in structure, easy to maintain. They are widely used in mining, metallurgical and coal industry to transfer sandy or lump material, or packaged material. According to different transferring equipment, the transfer system can be one independently or multi-conveyers or combined with other transfer equipments. The belt conveyer can be installed horizontally or aslope to meet the needs of different transfer lines.
The belt conveyers produced by BREAK-DAY can be operated in the circumstance temperature range from -20℃ to +40℃. The temperature of transferred material by this belt conveyer should be lower than 50℃.
The belt conveyors produced by SBM can be operated in the temperature situation ranging from -20℃ to +40℃. The temperature of transferred material by this belt conveyor should be lower than 50℃.The types of the belt produced by SBM are as follows:
1. Devided by Driving Method:
a. STD-Mechanical Drive：It's driven by cycloidal pinwheel reducer (with outdoor motor ) and chain-drive mechanism.
b. STDJ Ⅱ Mechanical Drive Series.It adopts upside-down and belt-drive mechanize.
c. STD-Electric Rotor Drive Series：It's driven by electric rotor.
2. Divided by Installation Methods
a. Fixed Series：It's directly installed on foundation.

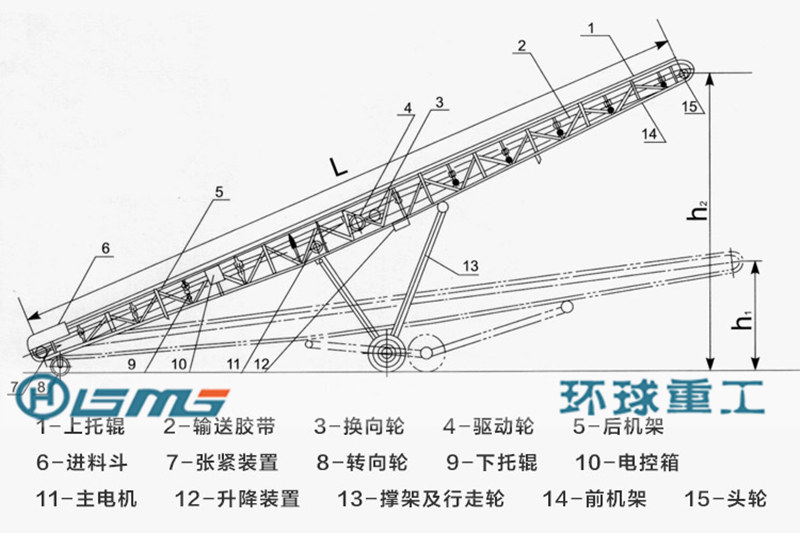

b. SDY-Portable Series：It can be easily and freely moved and the capacity can be adjusted.
3. Divided by Structures:
The belt conveyors produced by SBM have three different structures.

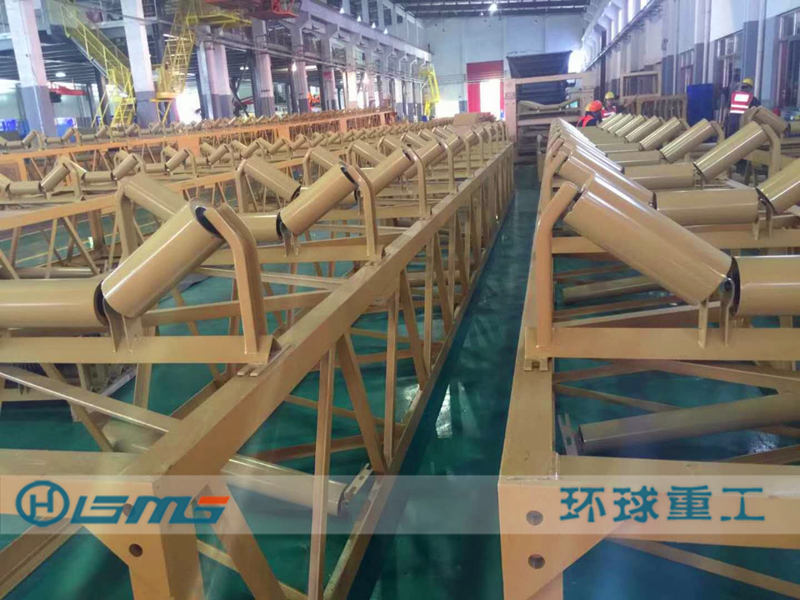

a. U-steel b. Frame c. Truss
NOTE:
There are two kinds of conveyors, one equipped with repairing walkway while the other without. When ordering the machine, the customers should give us clear instruction.
Global Heavy Industry provides customers with production line design process and helps to design a satisfactory and reasonable production line. We also provide related technical personnel training and enable them to acquire a certain amount of technical knowledge and machine maintenance tips.
| Belt width(mm) | Conveying length(m) Power(kw) |
Conveying speed(m/s) | Conveying amount(t/h) | ||
| 400 | ≤10 3 |
12-15 3-4 |
15-30 4-7.5 |
1.25-2.0 | 30-60 |
| 500 | ≤10 3 |
12-15 4-5.5 |
15-30 5.5-7.5 |
1.25-2.0 | 40-80 |
| 650 | ≤10 4 |
12-15 7.5 |
15-30 7.5-11 |
1.25-2.0 | 80-120 |
| 800 | ≤10 4 |
12-15 7.5 |
15-30 7.5-15 |
1.25-2.0 | 120-200 |
| 1000 | ≤10 5.5 |
10-20 7.5-11 |
20-40 11-22 |
1.25-2.0 | 200-320 |
| 1200 | ≤10 7.5 |
10-20 7.5-15 |
20-40 15-30 |
1.25-2.0 | 290-480 |
| 1400 | ≤10 11 |
10-20 15-22 |
＜20-40 22-45 |
1.25-2.0 | 400-680 |
| 1600 | ≤10 15 |
10-20 22-30 |
＜20-50 30-75 |
1.25-2.0 | 600-1080 |
| 1800 | ≤10 18.5 |
10-20 30-45 |
＜20-50 45-110 |
1.0-2.0 | 200-1500 |
| 2000 | ≤10 22 |
10-20 45-55 |
＜20-40 55-132 |
1.0-2.0 | 1000-2000 |
| 2400 | ≤10 30 |
10-20 55-75 |
＜20-40 75-185 |
1.0-2.0 | 1500-3000 |
Models and specifications of the equipment, according to the actual needs of customers, or special requirements of customers, can be custom designed.
