Single Cylinder Cone Crusher

Overview of Single Cylinder Cone Crusher

Single-cylinder cone crusher is divided into standard type and short-headed type which are used for medium crushing and fine crushing respectively. It is suitable for crushing all kinds of ores and rocks with high and over-medium hardness in medium, construction, water and electricity, transportation, chemistry and building material industry.
The Advantages and Benefits of Single Cylinder Cone Crusher: 1. High efficiency. 2. Big production capacity. 3. High-quality final products. 4. Multiple cavity medium and fine crushing.

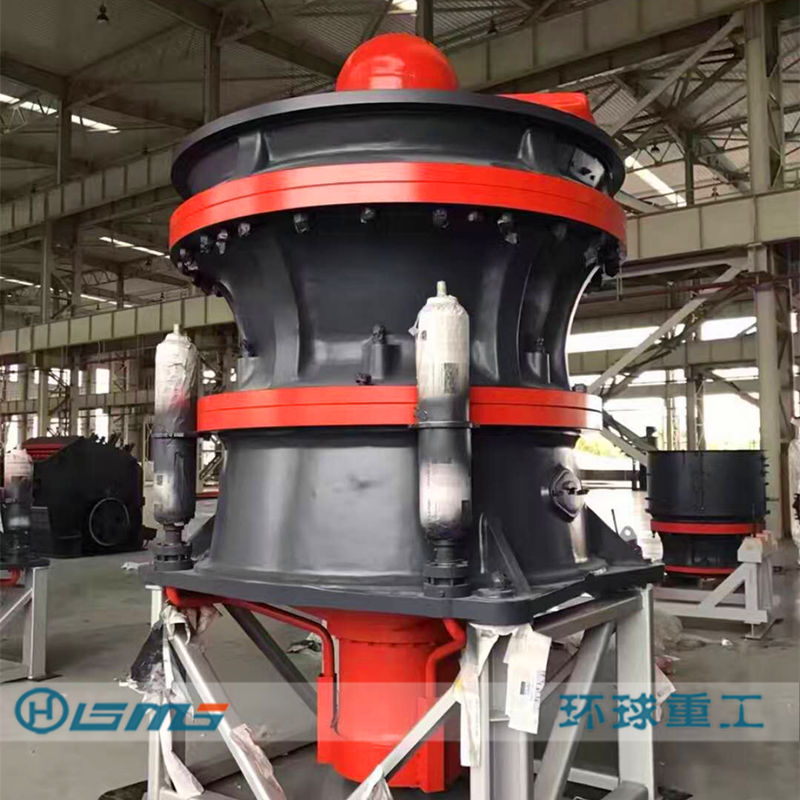

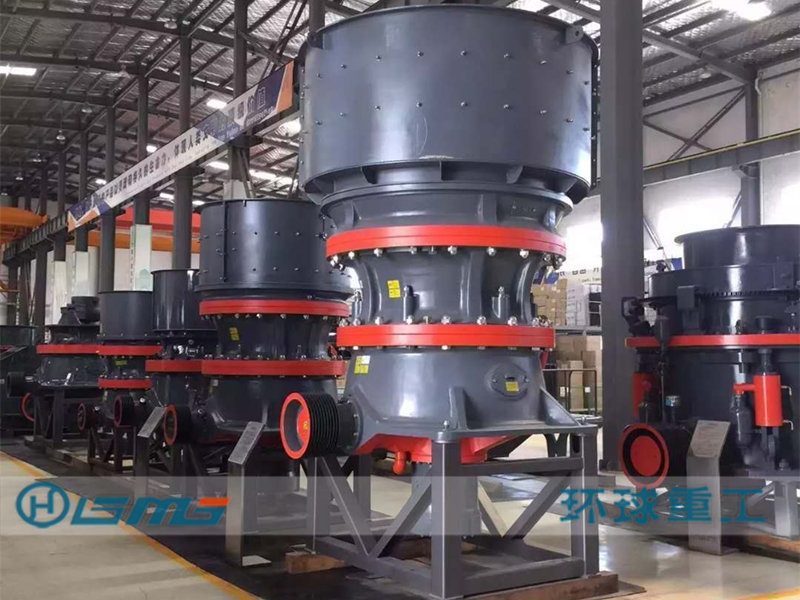

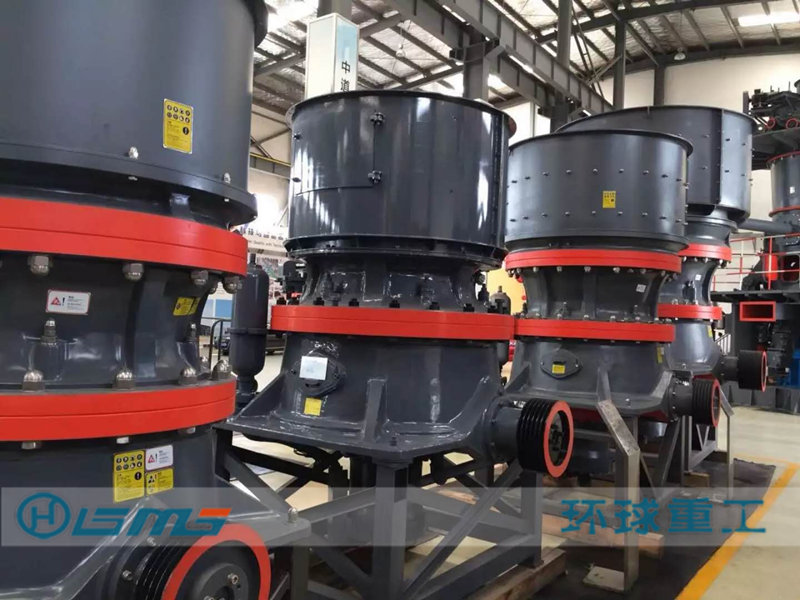

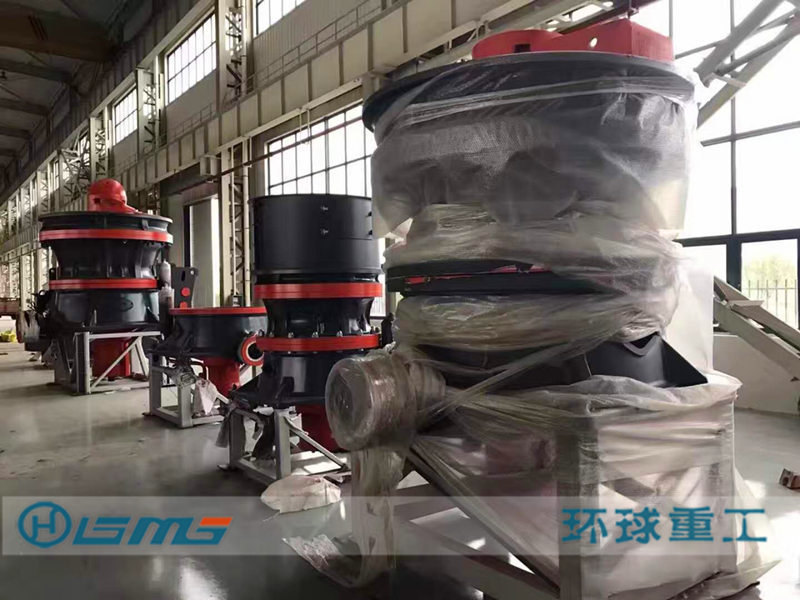

Pictures of Single Cylinder Cone Crusher

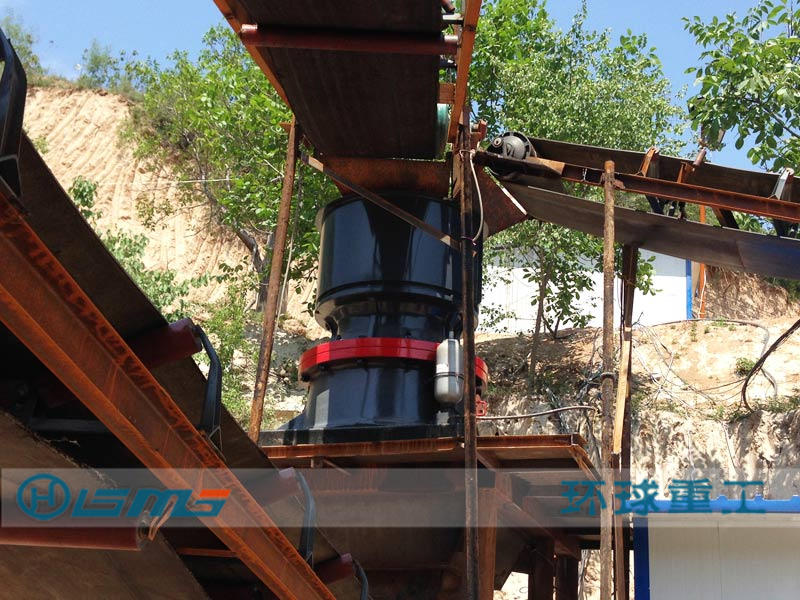

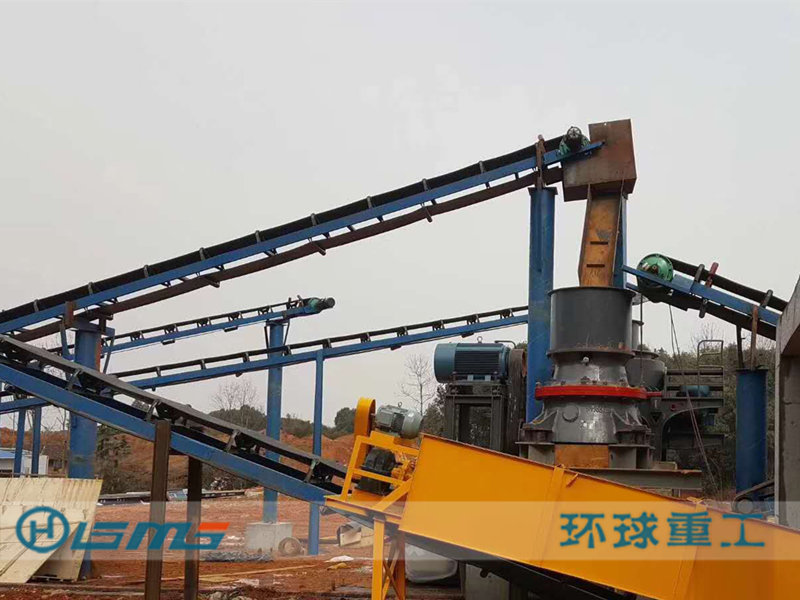

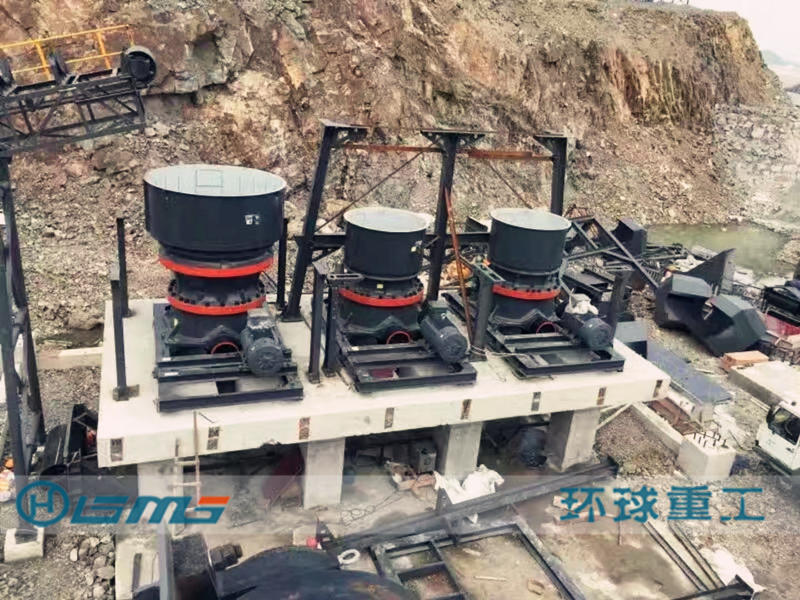

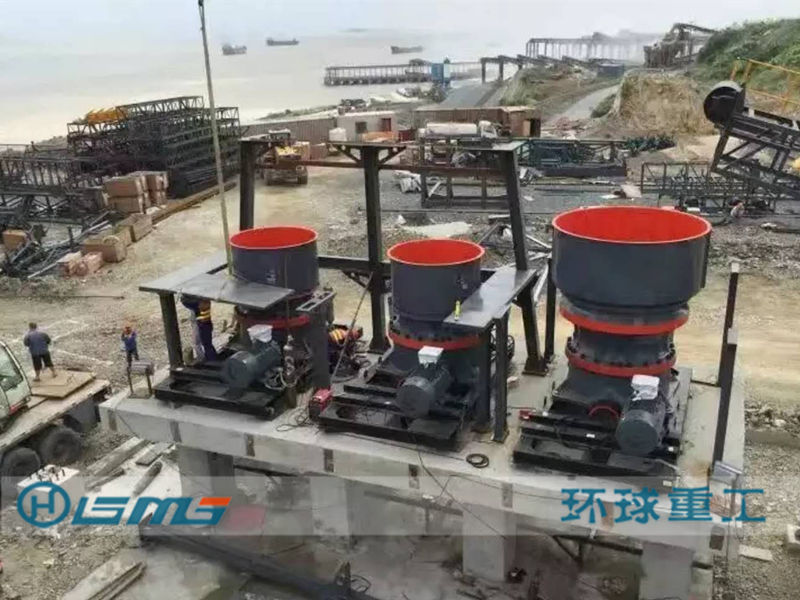

Project cases of Single Cylinder Cone Crusher

Working Principle of Single Cylinder Cone Crusher

When single-cylinder hydraulic cone crusher works, the electro motor drives the pinion of the crusher, the pinion drives the rack wheel, the rack wheel assembly including rack wheel, rack wheel brace and eccentric steel bushing drives the eccentric bushing assembly including eccentric cylinder liner and eccentric copper bushing and the spindle unit including principal axis, inner cone and inner cone lining plate to revolves around the theoretical perpendicular line inside the copper bushing and the spindle unit can realize rotation around the central line of the principal axis inside the eccentric copper bushing.

Features of Single Cylinder Cone Crusher

1. High efficiency. This hydraulic cone crusher has supporting device on both upper end and lower end of the principle axis, so that it can sustain bigger crushing force and stroke, plus the special crushing chamber corresponding to the lamination principle, making it have higher crushing efficiency.

2. Big production capacity. This hydraulic cone crusher perfectly integrates with crushing stroke, crushing speed and the shape of the crushing chamber, so that when the diameter of the big end of the movable cone is the same, the productivity of this cone crusher is improved by 35%~60% compared with that of traditional spring cone crusher.

3. High-quality final products. This hydraulic cone crusher uses unique crushing cavity and lamination crushing principle to produce crushing effect between particles, so that the cubic particles in the final products accounts higher proportion and the granularity is evener.

Prices of Single Cylinder Cone Crusher

Global Heavy Industry provides customers with production line design process and helps to design a satisfactory and reasonable production line. We also provide related technical personnel training and enable them to acquire a certain amount of technical knowledge and machine maintenance tips.

Technical Data of Single Cylinder Cone Crusher



Models and specifications of the equipment, according to the actual needs of customers, or special requirements of customers, can be custom designed.
