Applications:Ore crushing, railway, highway, energy, cement, chemical industry, construction, etc
Materials:limestone, granite, coal, slag, clay.
Feed size:100-500mm
Capacity:10-350t/h

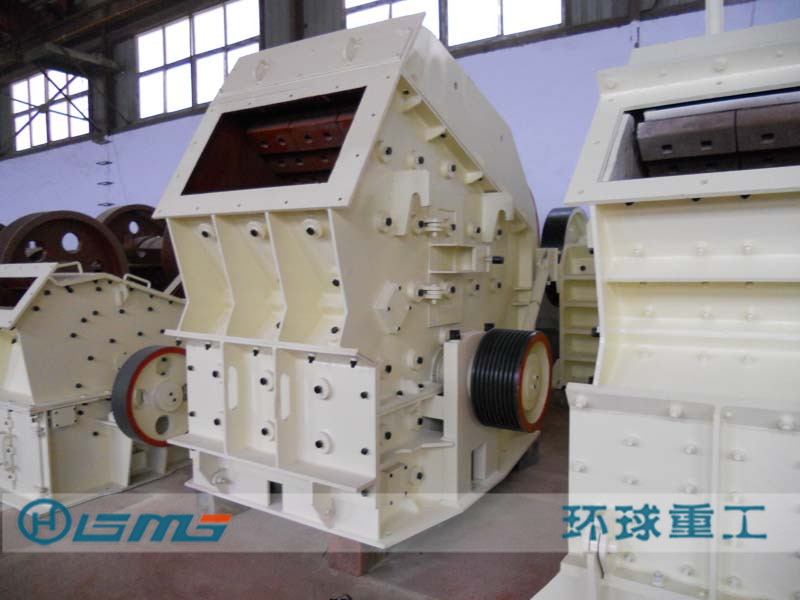

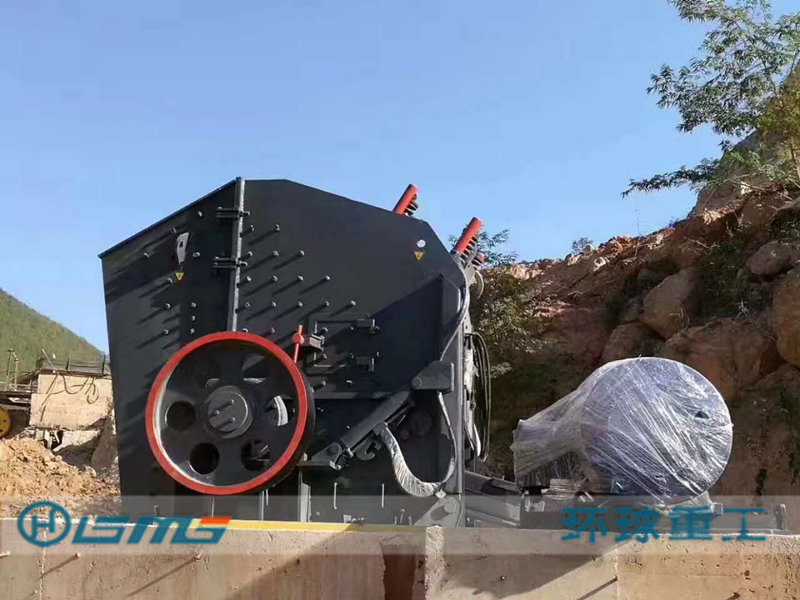

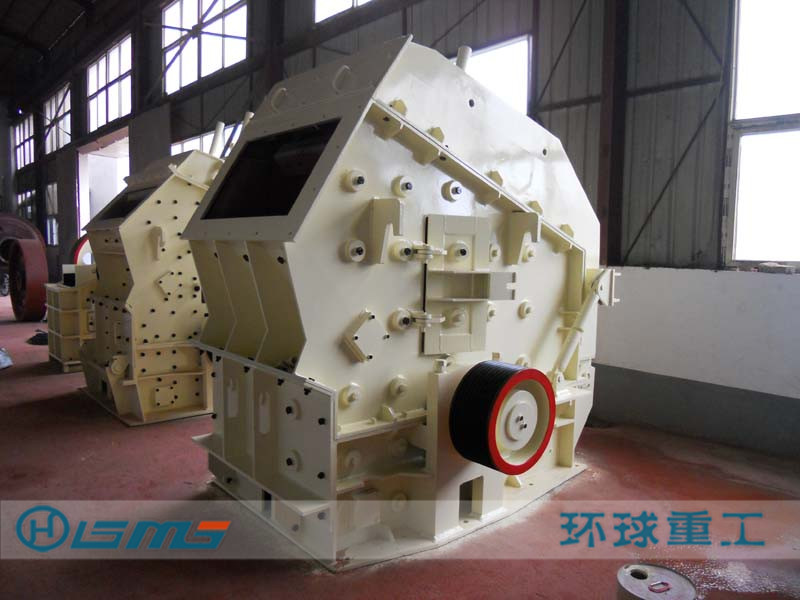

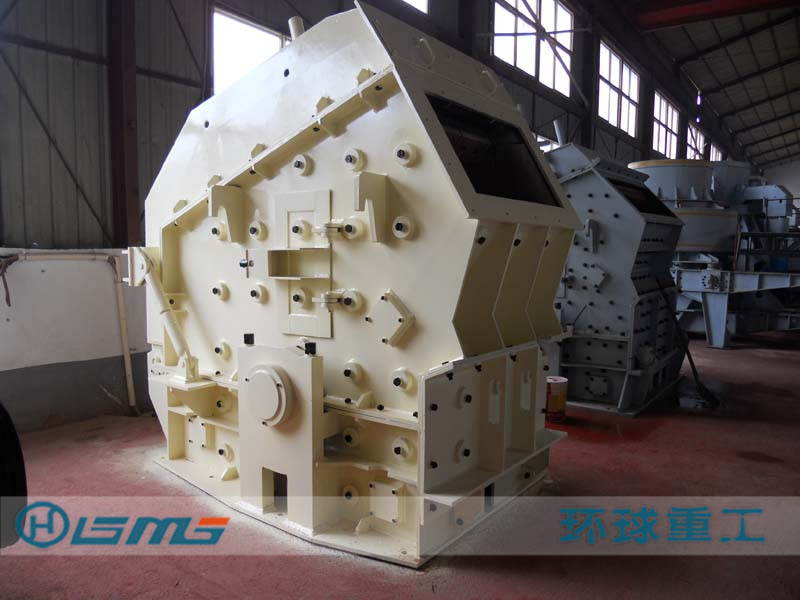

This impact crusher can treat various coarse, medium and fine materials (granite, limestone, concrete) with feed size not larger than 500mm and compressive resistance not more than 350MPa. This machine is widely used in mining, highway and railroad, construction stuff and other relative industries and its capability is prior to the cone crusher and the hammer crusher. Its rotors are connected with keyless trapper sleeves. It has unique gear impact lining plate. The wearing parts in hydraulic device are replaceable, convenient for haul.
Impact crusher crushes material by striking energy.when it works,the motor drives the rotor rotate at a high speed,on which the blow bar is installed .as soon as the material get into the affecting area of the blow bar,they will be stroke by the blow bar and be thrown to the impact devices around the rotor.the high speed forces the material to rebound from the impact liner to the area where the blow bar effects until they have been crushed to the required size.the clearance between the impact rack and the rotor can be adjusted to change the size and shape of the end product.
1) High reduction ratio and crushing efficiency;
2) No-board connection; The blow bar with high chrome(high chromed blow bar);
3) Impact plate with a special shape;
4) Crushed product with cubical shape;
5) Easy maintenance and reliable operation.

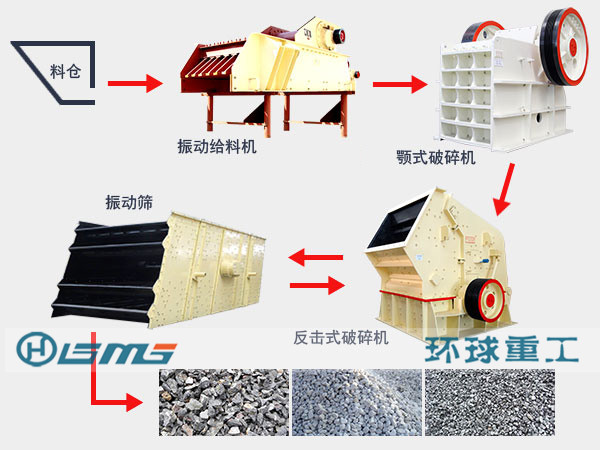

Global Heavy Industry provides customers with production line design process and helps to design a satisfactory and reasonable production line. We also provide related technical personnel training and enable them to acquire a certain amount of technical knowledge and machine maintenance tips.
| Model | Specification （mm） |
Feed opening （mm） |
The Maximum Feeding Size （mm） |
Capacity （t/h） |
Power （kw） |
Total weight （t） |
Overall dimension （L×W×H） （mm） |
| PF-1007 | Φ1000×700 | 400×730 | 300 | 30-70 | 4P 37-45 | 12 | 2330×1660×2300 |
| PF-1010 | Φ1000×1050 | 400×1080 | 350 | 50-90 | 4P 45-66 | 15 | 2370×1700×2390 |
| PF-1210 | Φ1250×1050 | 400×1080 | 350 | 70-130 | 6P 110 | 17.7 | 2680×2160×2800 |
| PF-1214 | Φ1250×1400 | 400×1430 | 350 | 100-180 | 6P 132 | 22.4 | 2650×2460×2800 |
| PF-1315 | Φ1320×1500 | 860×1520 | 500 | 130-250 | 6P 200 | 27 | 3180×2720×2620 |
| PF-1320 | Φ1300×2000 | 993×2000 | 500 | 165-320 | 6P 250 | 34 | 3220×3100×2620 |
| PF-1520 | Φ1500×2000 | 830×2040 | 700 | 300-550 | 4P 315-400 | 50.6 | 3959×3564×3330 |
| PF-1820 | Φ1800×2000 | 1260×2040 | 800 | 600-800 | 6P 630-710 | 83.21 | 4400×3866×4009 |
Models and specifications of the equipment, according to the actual needs of customers, or special requirements of customers, can be custom designed.
