Applications:Primary crusher in mining, quarry, mixing and batching plant, road and building construction, highway, railway and subway, and water conservancy.
Materials:Calcite, barite, limestone, ceramic, slag, zircon sand, slag, slag, activated
Feed size:≤800mm
Capacity:85-650t/h

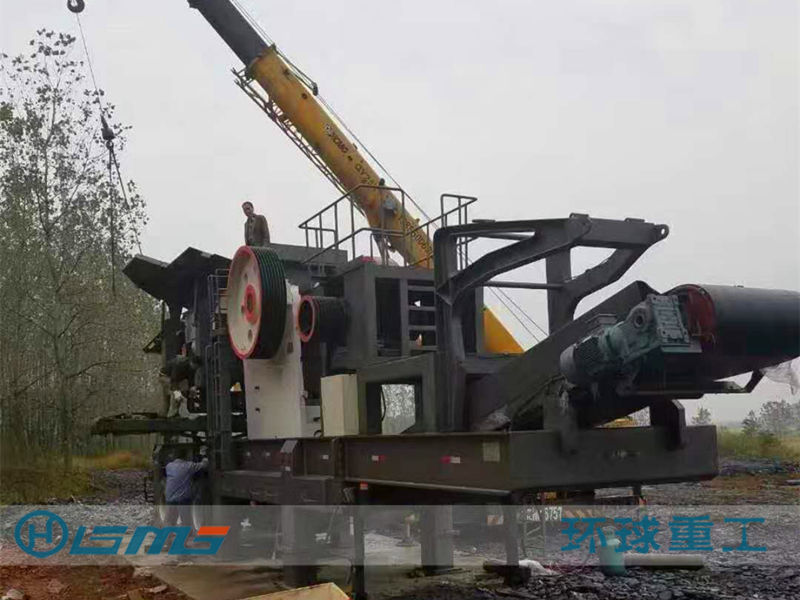

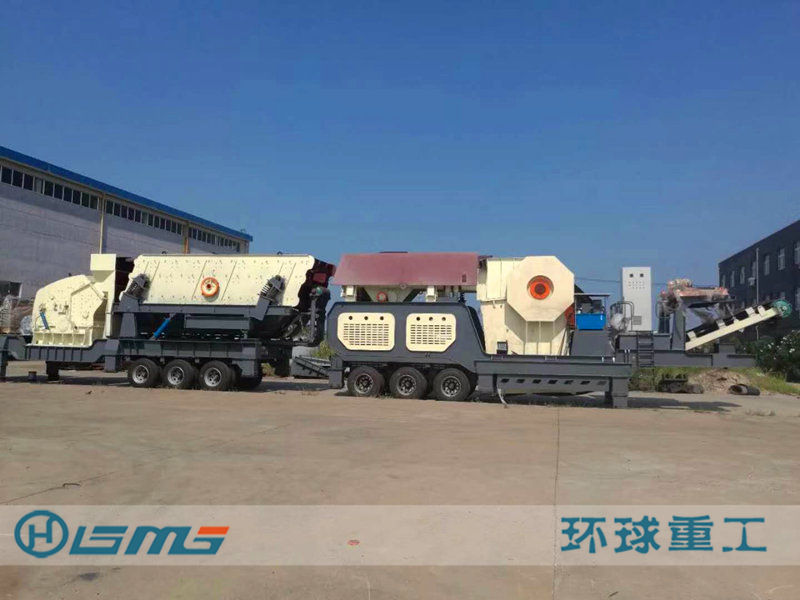

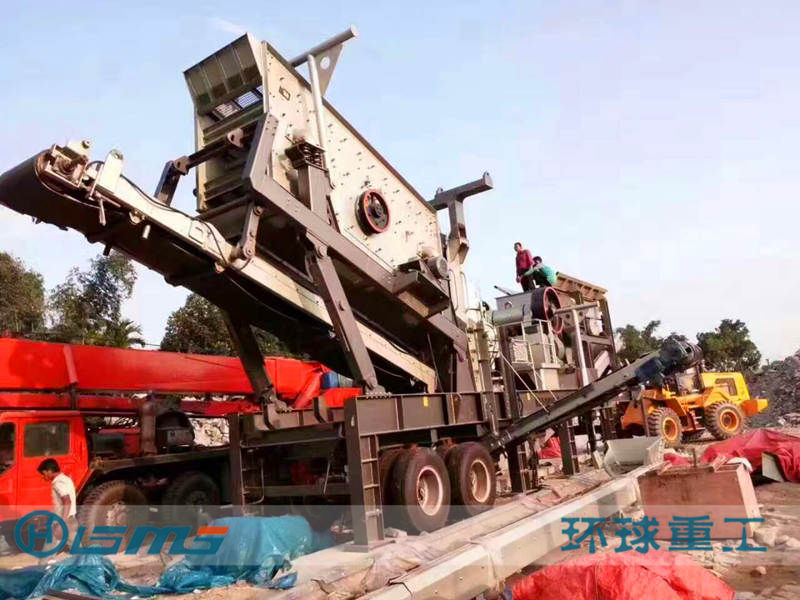

Since the late 20th century, tens of thousands of Mobile Primary Jaw Crushers equipped with quality jaw crushers have been installed all over the world. From single machine running to multiterminal online application, Mobile Primary Jaw Crusher can satisfy customers’ diversified demand.
The mobile primary jaw crushers are characterised by their uncompromising design and sturdiness. The outstanding overall performance of the machines results from the harmonious interplay of all components. In this way, the series of machine provide a variety of innovative solutions with regard to efficiency, availability, versatility and, last but not least, the quality of the end product.

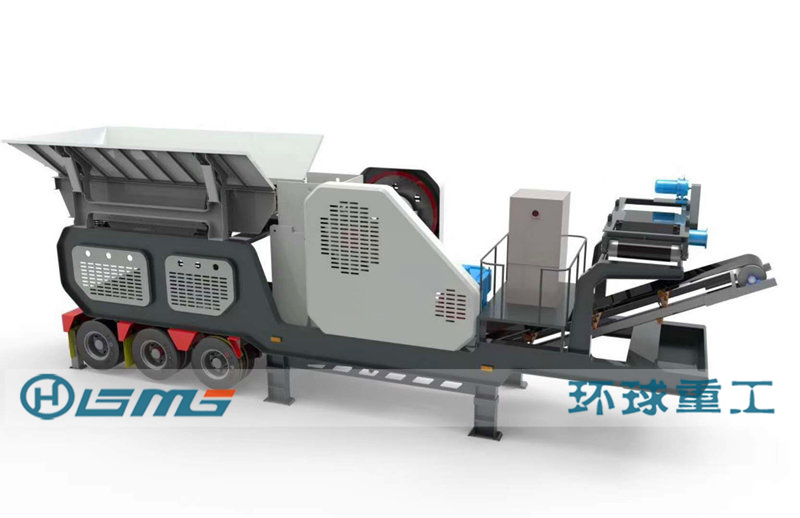

It adopts ship form steel structure and low vehicle chassis with light weight. The volume is controlled reasonably. Hidden style traction frame is easy to be packed up and put up. The transportation turning radius is very small.
Feeding guard is lifted by hydraulic pressure, easy to be loaded and unloaded, conveniently and reliably to be fixed.
Feeding guard adopts hierarchical type with two layers structure which provides prerequisites for widening.
The vehicle control cabinet is equipped with high-tech LCD touch screen and PLC control system. LCD touch screen with man-machine dialogue function makes it possess the functions of key start, misuse tips and protection, electrical control operations, fault and safe tips. It is convenient, efficient and secure.
Grizzly bars of the feeder is capable to separate out the small-sized material as the wastes. By adopting the automatic separatory hatch door, materials in the wastes hopper would flow either with the side-opening belt conveyor, or with the main materials.

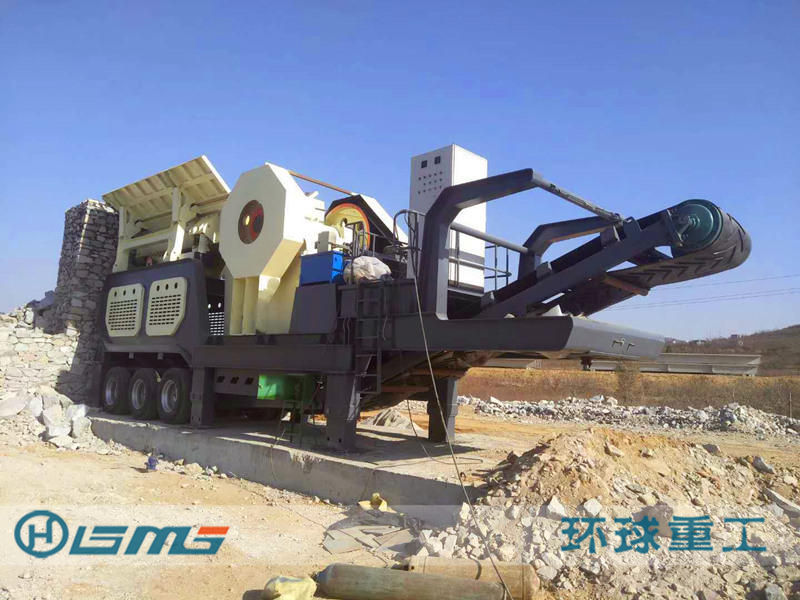

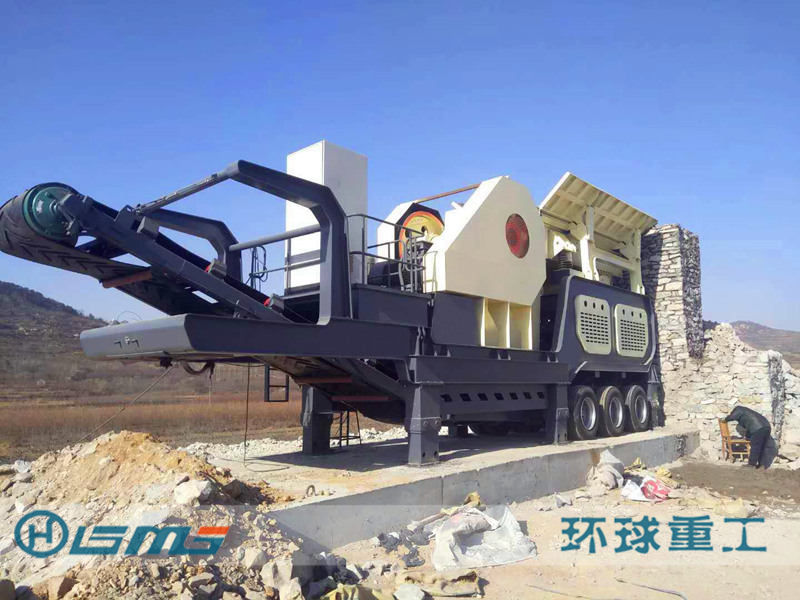

Height of belt conveyor is adjustable. It also can be twisted and folded.

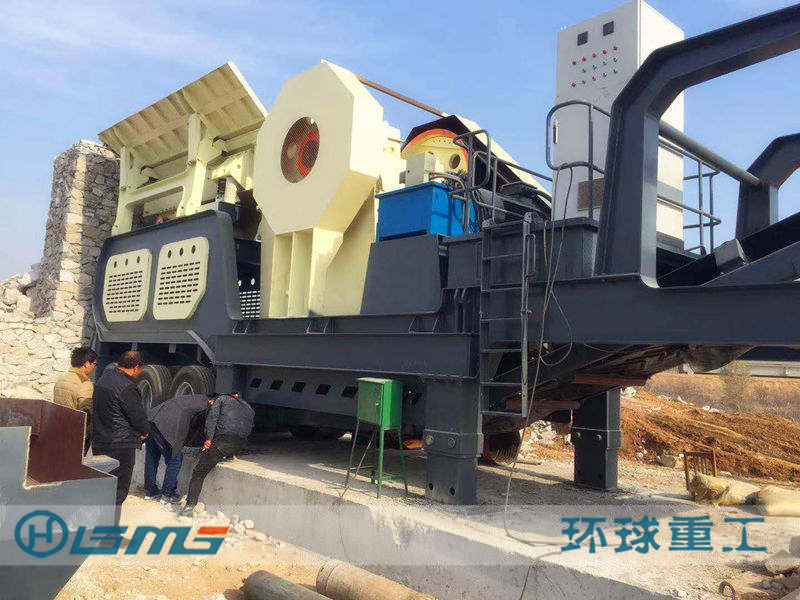

Landing legs adopt hydraulic lift mode which is of convenient operation and reliable performance.
With overall streamlined body design and metallic paint spraying, this plant is the perfect combination of mechanics and aesthetics.
Global Heavy Industry provides customers with production line design process and helps to design a satisfactory and reasonable production line. We also provide related technical personnel training and enable them to acquire a certain amount of technical knowledge and machine maintenance tips.
| Model | Feeding Equipment | Crushing Equipment | Max. preparedness capacity(t/h) | Overall Dimension | Weight (t) | ||
| Model | Model | Max. Feeding Size(mm) | output (t/h) |
Transport dimension (need tear-down) | |||
| GMGE600-1 | TSW0936 | PE600×900Ⅱ | 500 | 90-180 | 100-210 | 12150×2600×3950(mm) | 43 |
| GMGE750-1 | TSW1139 | PE750×1060 | 630 | 110-300 | 130-330 | 13000×2850×4400mm | 61 |
| GMGE760-1 | TSW1139 | PEW760 | 640 | 150-310 | 170-330 | 13000×2800×4200(mm) | 55 |
| GMGE860-1 | TSW1345 | PEW860 | 720 | 200-420 | 230-450 | 14600×3000×4500(mm) | 64 |
| GMGE1100-1 | TSW1548 | PEW1100 | 930 | 300-600 | 350-650 | 14050×2900×4000(mm) | 96 |
| GMGF1214Ⅱ-1 | TSW0936 | PFW1214Ⅱ | 500 | 110-190 | 120-210 | 12150×2600×3980(mm) | 48 |
| GMGF1214Ⅱ-1 | TSW1139 | PFW1214Ⅱ | 500 | 110-190 | 140-230 | 13000×2800×4200(mm) | 53 |
| GMGF1315Ⅱ-1 | TSW1345 | PFW1315Ⅱ | 600 | 180-280 | 190-310 | 14600×3100×4500(mm) | 61 |
| GMGF1415Ⅱ-1 | TSW1548 | PFW1415Ⅱ | 700 | 280-450 | 310-480 | 14050×3000×4000(mm) | 74 |

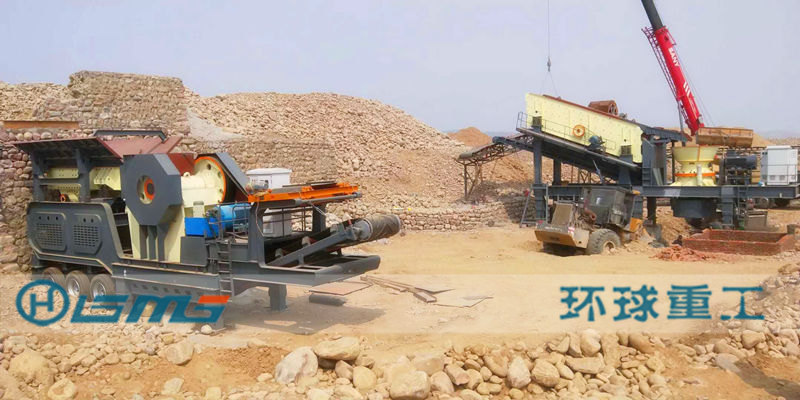

We can design the primary, secondary and third crushing stages according your different demands of different customers. Meanwhile, we optimize the combination of all levels crushing and screening. We will try our best to meet the demands of all customers.
Models and specifications of the equipment, according to the actual needs of customers, or special requirements of customers, can be custom designed.
